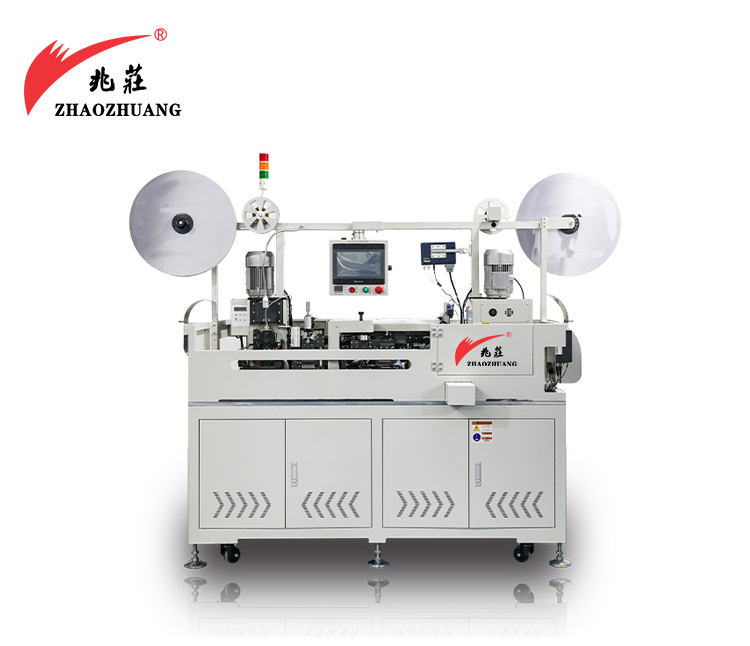

Double-End Stripping Crimping Insert Housing Machine
Product Categories: Automatic Crimp Machine
Model: XC-8150
Brand: ZHAOZHUANG
Online Inquiry*Equipment function: the front and rear ends are pierced through the shell, and the front end can be pierced through the shell and the rear end can be dipped in tin
*Cost saving: the front and rear ends are pressed through the shell, and the rear end is dipped in tin. All processes are automatically completed, saving production costs for customers.
*Good stability: The crimping end adopts eccentric shaft and cam structure, the crimping force of the terminal is balanced, the crimping of the terminal is neat, and the consistency is good.
*High precision: Servo motors are used to control cutting, peeling, pressure end positioning, shell feeding, shell piercing, and precise positioning.
*Simple operation: touch screen operation, easy parameter setting and operation, easy to understand at a glance, ordinary employees only need simple training, and one person can operate several devices
| Model | XC-8150 |
| Applicable wire range | AWG28-AWG18 |
| Stripping /Tinning length | Front:0-5mm, Rear:0-10mm |
| Cut precision | ±(0.1+0.01*L) mm, L=cut length |
| Cutting length | 45-1000mm |
| Capacity | 300-380pcs/hour (L=110mm) |
| Crimping force | 2.0T |
| Stroke | 30mm or 40mm strokes for optional |
| Air pressure | 0.6-0.8Mpa |
| Housing type | 1.25/1.5/2.0/2.5/3.96(mm) |
| P number of shell processing | 2P-12P(Flat cable) 2P-20P(Electronic wire) |
| Detection | Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error, Insertion error |
| Rated Current | 45A |
| Power | 220V/110V/50/60HZ |
| Dimension | 2183x2350x1800mm |
| Weight | 1100Kg |
| Options | CCD visual Inspection; CFM |
