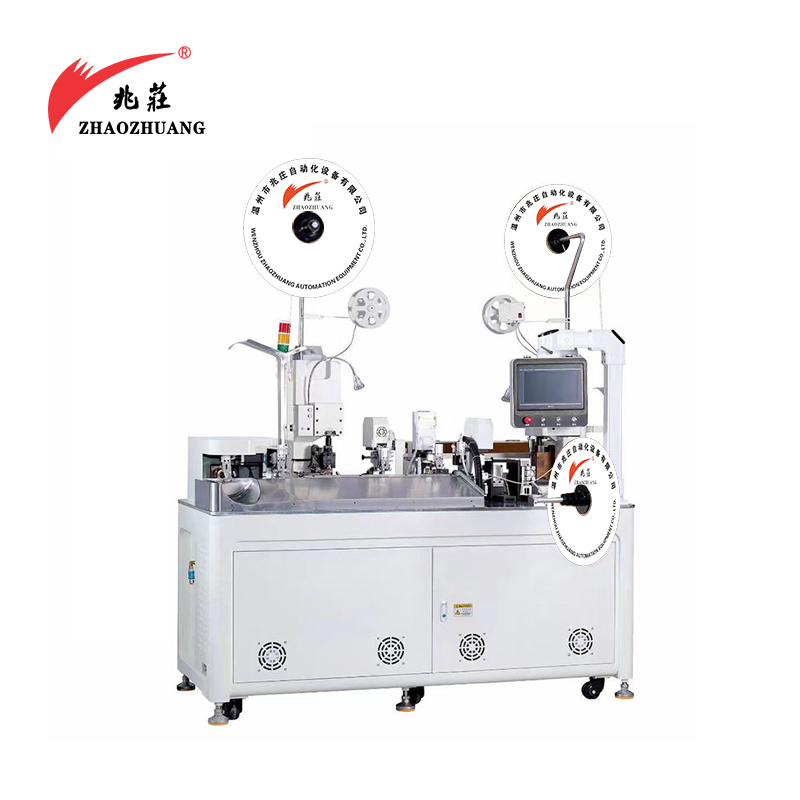

Fully automatic double-head Crimp Insert number tube machine
Product Categories: Automatic Crimp Machine
Model: XC-8155
Brand: ZHAOZHUANG
Online Inquiry1. The equipment is mainly made of Taiwan and Japanese brand originals, which can complete the functions of cutting wires, peeling, terminal crimping, etc., with precise movements and stable performance.
2. The host has a built-in four-wheel synchronous wire feeder to keep the wire tension constant; it is equipped with an automatic terminal tape cutting device.
3. Controlled by the motion control card of the main engine, the parameters are set on the Chinese and English touch screen, the adjustment time is short and the operation is easy.
4. Suitable for cross-feed and direct-feed OTP terminal moulds.
5. Energy-saving, space-saving and environment-friendly equipment.
| Model | XC-8155 |
| Applicable wire range | AWG22-AWG14 |
| Stripping length | Front:0.5-8mm, Rear:0.1-10mm |
| Cut precision | ±(0.2+0.002*L) mm, L=cut length |
| Cutting length | 66-99999mm |
| Capacity | 700-900pcs/hour (L=80-150mm) |
| Crimping force | 2.0T |
| Stroke | 30mm or 40mm strokes for optional |
| Air pressure | 0.4-0.6Mpa |
| Cutting depth | maximum adjustment 5.50mm, resolution 0.01mm |
| Dimension | 800x1800x1800mm |
| Weight | 800Kg |
| Options | CCD visual Inspection; CFM |
