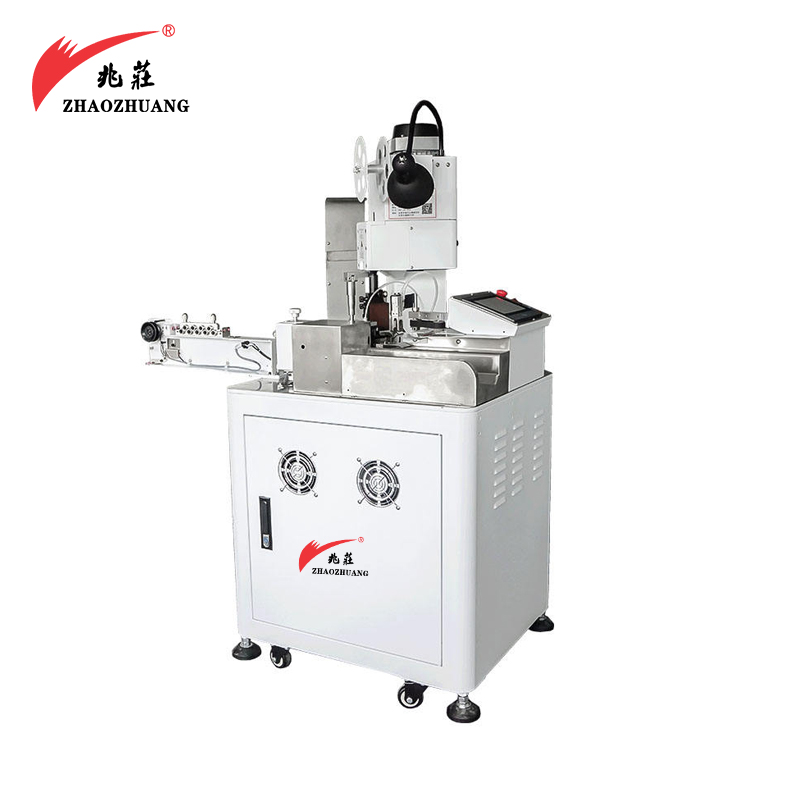

Twin Wire Stripping Crimping and Tin Soldering Machine
Product Categories: Automatic Crimp Machine
Model: XC-8135
Brand: ZHAOZHUANG
Online InquiryThe fully automatic wire crimping and soldering machine is especially designed for processing 2 pins cable, it can also process single wire. Firstly, it will slit the cable end, cut and strip the wire, one side crimping terminal, another side twisting and soldering.
| Model | XC-8135 | ||
| Applicable wire range | AWG10-AWG18 | ||
| Stripping length | 0.5-20mm | ||
| Cut precision | ±(1+0.002*L) mm (L=100mm) | ||
| Cutting length | 26-9900mm(20mm can be customized) | ||
| Twisting length | 2-20mm | ||
| Tinning length | 0.5-20mm | ||
| Capacity | 2100pcs/hour(L=100) | ||
| Crimping force | 2.0T | ||
| Applicators | 30mm or 40mm strokes for optional | ||
| Air pressure | 0.4-0.6Mpa | ||
| Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) | ||
| Dimension | 720*850*1650mm | ||
| Weight | 265Kg | ||
| Power supply | 220V/110V/50HZ/60HZ | ||
