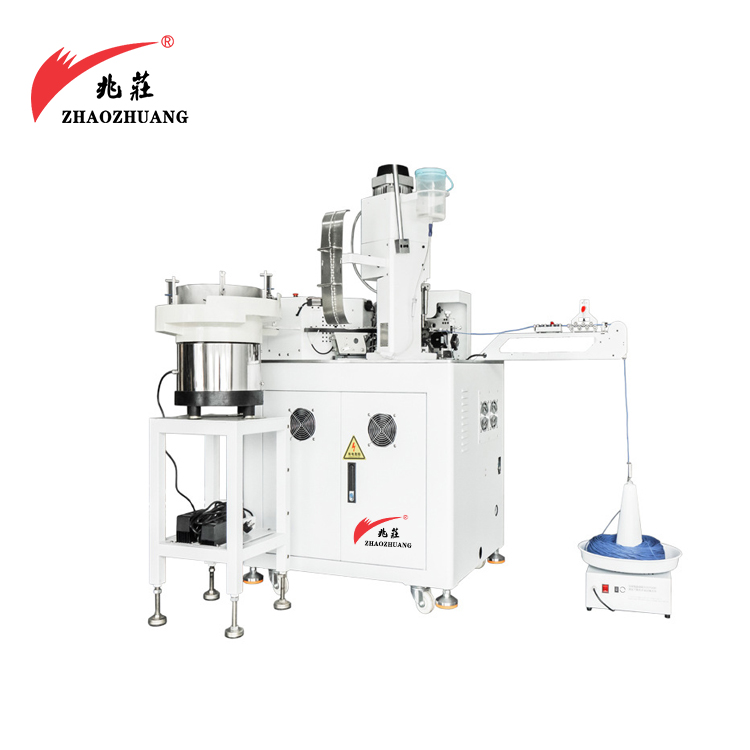

Fully Automatic Single Head Terminal Crimping Machine
Product Categories: Automatic Crimp Machine
Model: XC-8125
Brand: ZHAOZHUANG
Online Inquiry1.Touch screen can be replace in to withenglish version
2.High-precision moldsmake processingmorestable andincreaseproduction speed
3.Imported aluminum knurled hardtreatment,good abrasion resistance,no damage tothe wire skin,high wiredelivery accuracy,guaranteed size,not easy to slip and fall off
4.It is customized for PVc Sheathed,andthe viberation feeding plate is customizedaccording to the Pvc Sheathed samples.
Product model：XC-8125
Function Introduction：It can automatically complete cutting, peeling, threading of sheaths, crimping, pulling sheaths, twisting wires, and tinning
Peeling range：0-15mm
Cutting tolerance：+0.2%
Processing length：50-9900mm
Processing efficiency：1500pcs/h within 300mm
Crimping force：2-3T
Adapt to electrical wires：AWG16-26 # 1007 single electronic wire
Adapted mold：OTP horizontal and vertical card molds
Adapted sheath：187, 250, 110 and other straight tube sheaths
Electrical support：AC 220V 2.5Kw Air: 0.5-0.7MPa
Equipment size：750mm * 950mm * 1600mm (excluding accessories) 280Kg
Pneumatic components：Whole machine Yadeke
Linear slide rail：Silver on the whole machine
Crimping motor：1 set of Taibang motor
Action motor：Xuquan 6 pieces, optional with Dongling servo
Touch control：Buke One Set
drive control ：Jiayuan Intelligence 6 pieces
Motor frequency conversion：Jiayuan Intelligence 2 pieces
Circuit control：Whole machine Chint
