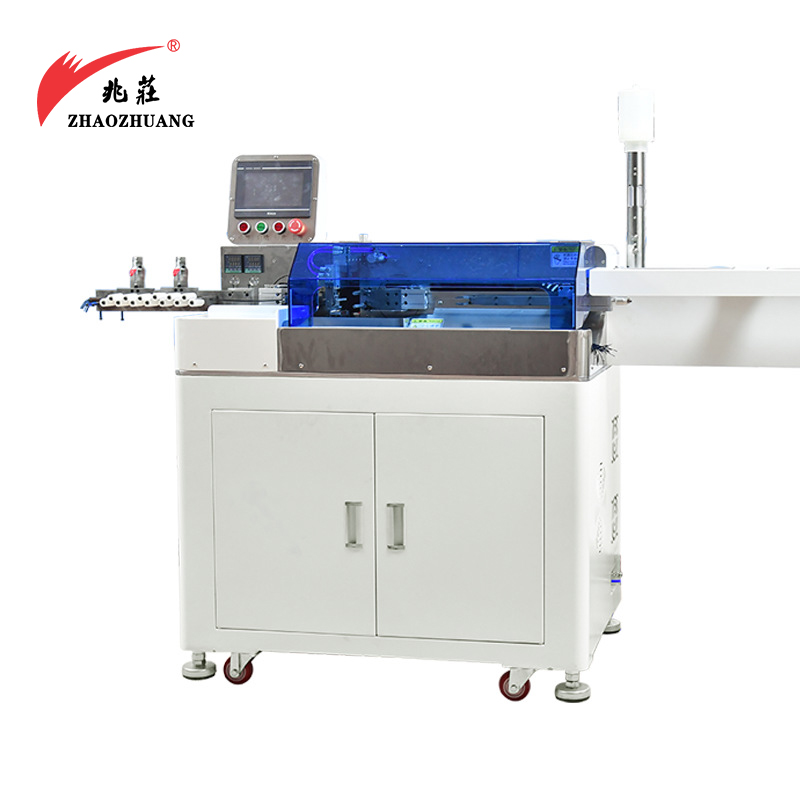

Automatic 8 Wires Stripping and Tinning Machine
Product Categories: Stripping and Twisting
Model: XC-8015
Brand: ZHAOZHUANG
Online Inquiry1. This equipment is mainly used for wire stripping, cutting, double ended twisted wire dip tin, single head twisted wire dip tin, ultra-short wire stripping dip tin.
2.Wire cutting, single ended peeling, double ended peeling, double ended half strip, double headed twisted wire, single ended dip tin, Double ended dip tin.
3.A wide range of production wire from AWBG16 to AWG 32, 8 wires can be processed at the same time, with high production capacity and wide application range.
4.Full chinese touch operation,simple and easy to learn.
| Model | XC-8015 |
| Wire range | AWG32-AWG16 |
| Stripping length | 1-15mm |
| Cut precision | ±(0.03*L) mm |
| Cutting length | 25-1000mm |
| Twisting length | 1-15mm |
| Tinning length | 1-15mm |
| Capacity | 15000-20000pcs/hour |
| Power | 220V/110V/50/60HZ |
| Air pressure | 0.5-0.7Mpa |
| Machine size | 1210*770*1380mm |
| Weight | 350Kg |
| Options | CCD visual Inspection; CFM |
