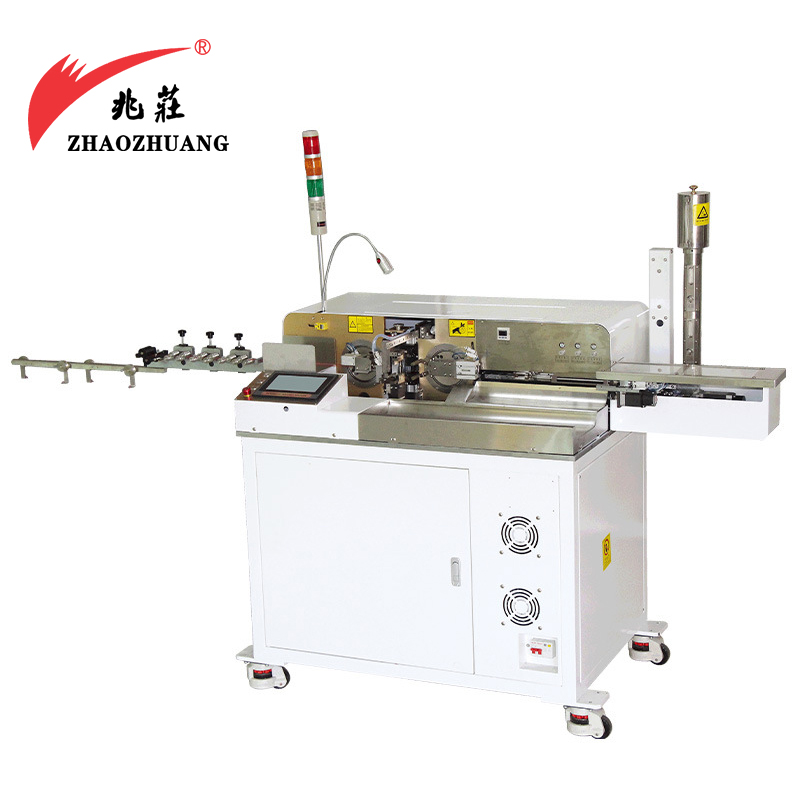

Automatic Wire Stripping and Tinning Machine
Product Categories: Stripping and Twisting
Model: XC-22F
Brand: ZHAOZHUANG
Online Inquiry1. It can complete wire cutting,both sides half/full stripping,both sides twisting and one side/both sides tinning automatically,also it can process 8 wires at one time.
2. All computer adjustments of this machine, including wire cutting length, stripping length, tin depth, etc. The KINCO 7-inchoperation screen, the computer adjusts the knife.
3. All servo motors, ball lead screw, high efficiency stepping drive, high precision and fast drive.
| Model | XC-22F |
| Wire range | AWG32-AWG16 |
| Stripping length | 0-20mm |
| Cut precision | ±(1+0.02*L) mm |
| Cutting length | 10-600mm (600-1500 can be customized) |
| Twisting length | 3-20mm |
| The min. cutting length with double side tinning | 11mm |
| Capacity |
9000-11000pcs/hour (AWG22-AWG32, 1-8 wires one time) 4000-5500pcs/hour(AWG20-AWG18, 1-5 wires one time) 2700-3000pcs/hour(AWG18-AWG16,1-3 wires one time) |
| Power | 220V/110V/50/60HZ |
| Air pressure | 0.5-0.7Mpa |
| Machine size | 1210*770*1380mm |
| Weight | 430Kg |
| Options | CCD visual Inspection; CFM |
