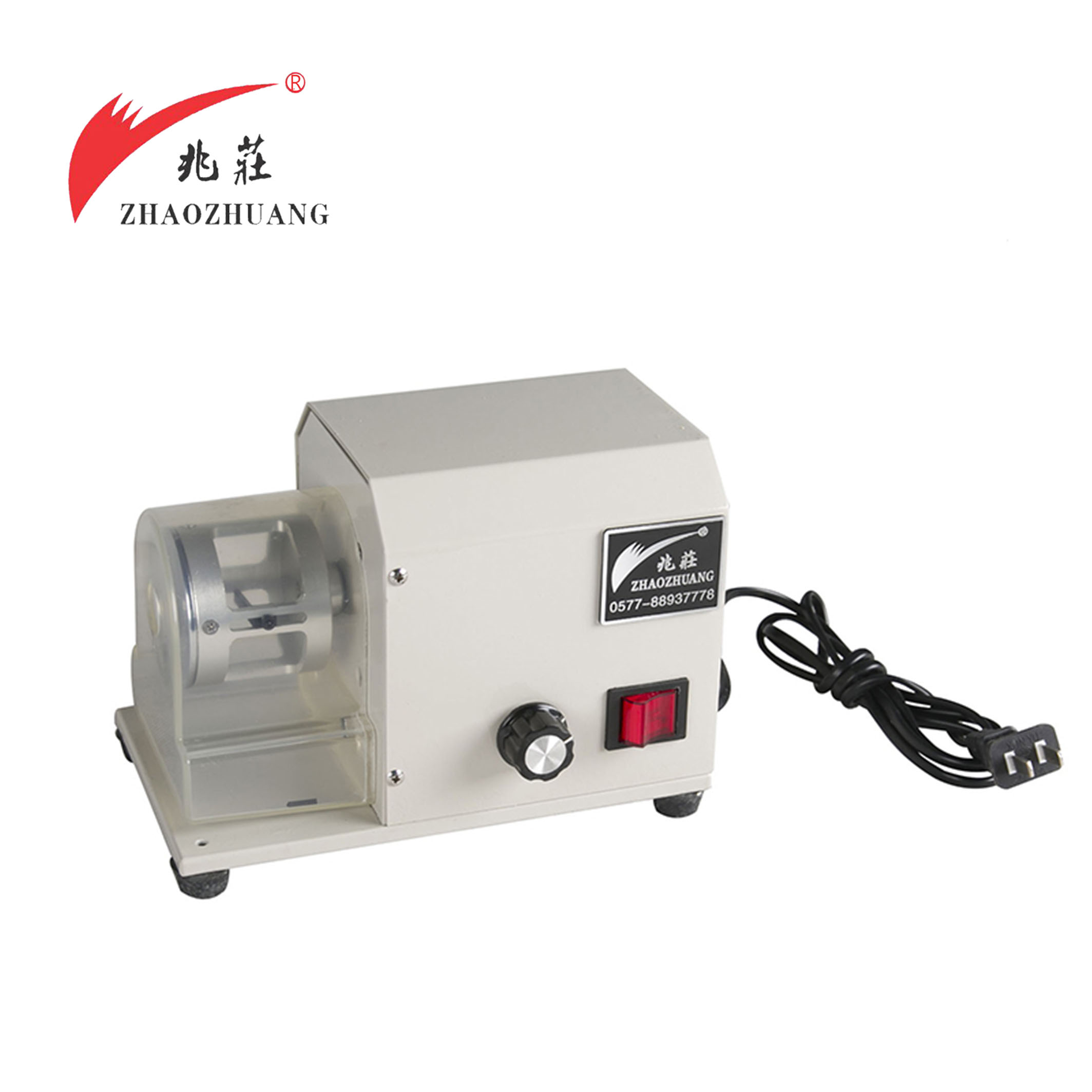

Peeling and Twisting Machine

Product Categories: Stripping and Twisting

Model: XC-10ST

Brand: ZHAOZHUANG

Online Inquiry
  • Description
  • Specification
  • Application

The machine is operated by a micro-motor. The fuselage is light, the area of the machine is small, it is easy to move, the sound is small and the speed is fast. It is suitable for stripping and twisting of single multi-strand plastic copper wire at one time.
Method of operation:
1. First cut the length of the thread you twist.
2. According to the size of the stripping line, choose and match the die, and then adjust the length of the stripping line you need to twist.
3. Turn on the power of the machine and make it work.
4. Insert the wire into the die of the machine quickly and pull it out quickly at the same time. With one step in place, the function of stripping and twisting can be completed.

Model XC-10ST
Power Supply AC220V 50/ 60HZ
Size L210*W125* H155mm
Weight 6kg
Power 120W
Processing range 1-4mm
Stripping length 2-20mm
