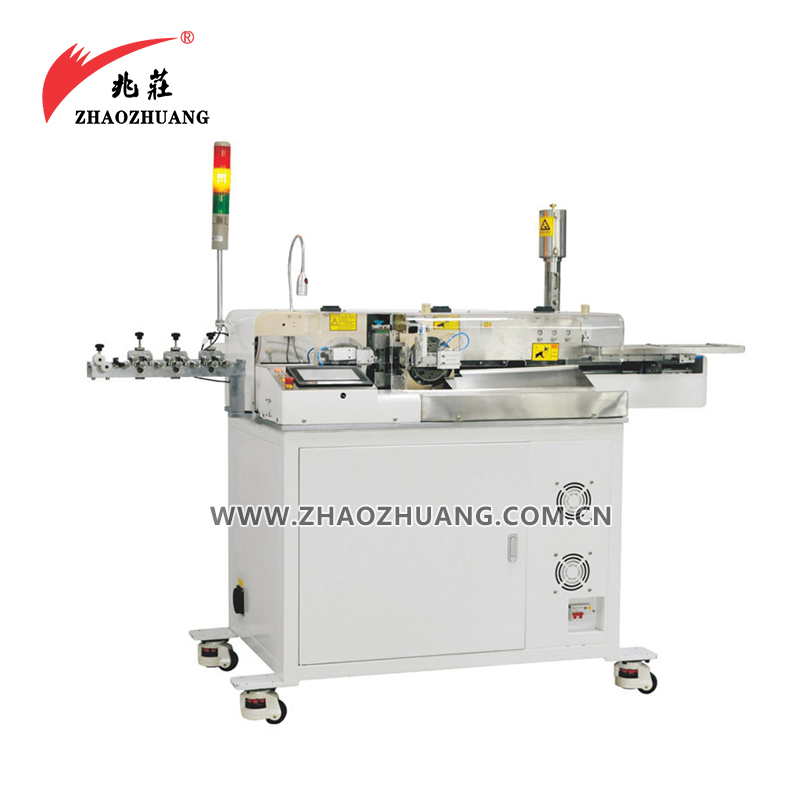

Automatic Double Side Wire Tinning/Soldering Machine
Product Categories: Stripping and Twisting
Model: XC-21F
Brand: ZHAOZHUANG
Online Inquiry1.Full automatic LCD screen,easy operation,convenient adjustment(English-Chinese language)
2.The whole machine adopts servo control. 90tin dipping uniformity and depthtrue.
3.Automatic tin dppneumatic regulating valve
| Model | XC-21F |
| Applicable wire range | AWG24-AWG32 |
| Stripping length | 0.1-6mm |
| Cut precision | ±(0.2+0.02*L) mm |
| Cutting length | 50-400mm |
| Twisting length | 3-5mm |
| Strand length | 30-400mm |
| Capacity | 1200-1800pcs/hour |
| Power | 220V/110V/50/60HZ |
| Air pressure | 0.5-0.7Mpa |
| Driving motor | Mitsubishi servo, industrial computer control |
| Weight | 430Kg |
| Options | CCD visual Inspection; CFM |
