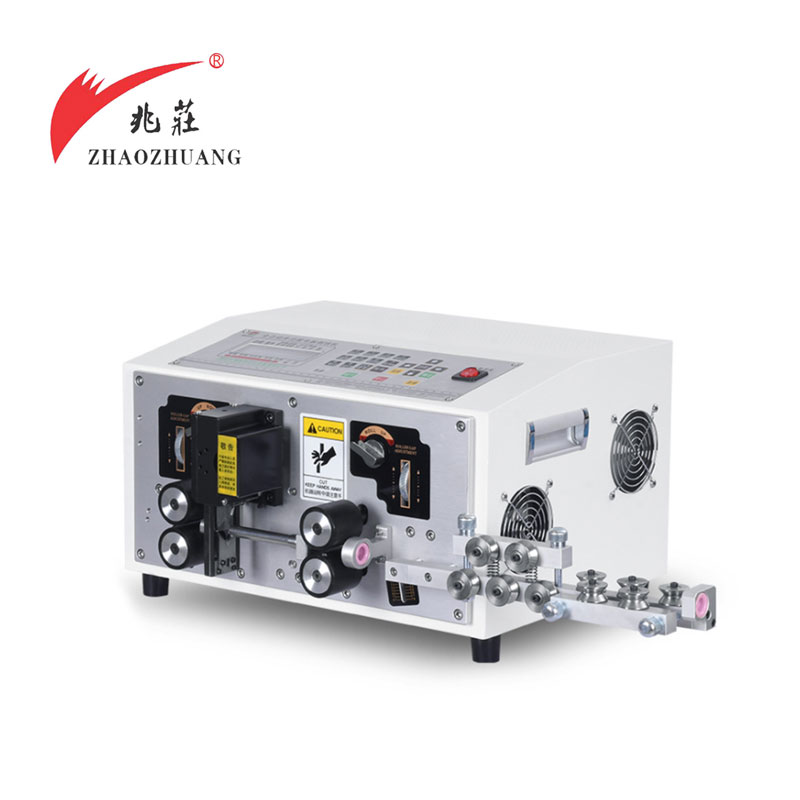

Automatic Cable Stripping Cutting Machine
Product Categories: Cutting and Stripping
Model: XC-905HA
Brand: ZHAOZHUANG
Online InquiryAutomatic Cable Stripping Cutting Machine
-
XC-905HA installed 6 sets of step motors, each of the 4 feeding rollers are driven by separate step motor to guarantee high level of wire cutting and stripping accuracy.
The blade unit adopts gear driven principle, stable and powerful, capable for stripping Max. 12mm2 BVR multi-strands wires or jacket cable.
-
Extraordinary program function to allow XC-905HA to switchover between various kinds of working modes, such as long wire mode, short wire mode, jacket cable mode, etc. This machine has 99 sets of memory function which is used to store different parameters for reuse.
-
Conveyor belt can be matched with this machine to collect wires after processing. Normally, the conveyor belt is suggested while cutting length is longer than 0.5m.
Automatic Cable Stripping Cutting Machine
Available Wire Size: 0.1-16mm2 (AWG#30-AWG#5)
Cutting Length: 0.1-99999.99mm
Stripping Length: Head 0-160mm, End 0-30mm
Max. Middle Stripping Section: 15 Places
Memory Function: Max. 100 Group of programs
Stripping Accuracy: ±(0.002mm ✖ Stripping Length)
Cutting Accuracy: ±(0.002mm ✖ Cutting Length)
Speed: 5000-7000 pcs/hour
Drive Mode: 4 Wheel drive
Display: LCD display with English menu
Blade Material: Hard tungsten steel
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 35KG
Weight: 58Kg
Dimension: 610*610*440mm(420*470*290mm)
