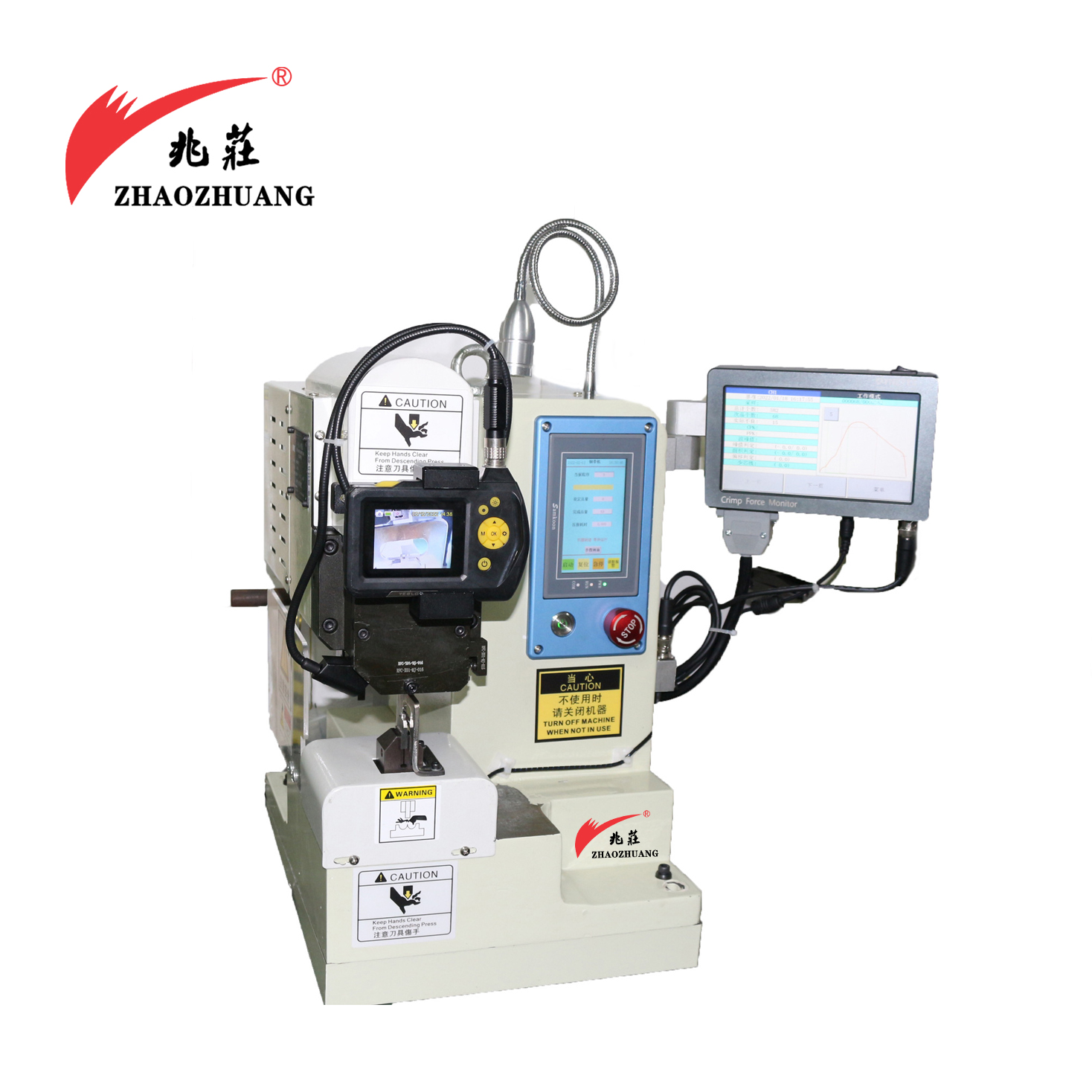

Servo Motor Copper Wire Splice Machine
Product Categories: Terminal Crimp Machine
Model: XC-1545
Brand: ZHAOZHUANG
Online Inquiry1.With pressure detecting device that automatically detects the quality of the crimped product and can export the crimped data for analysis.
2.The mould monitor is used to control the quality of the crimping, which allows the operator to visually observe the position of the product.
3.With automatic conveying of copper strip, the material is automatically cut, formed, pressed, and no waste is generated, saving costs.
| Model | XC-1545 |
| Splice force | 2.0T/3.0 Ton (can adjust ) |
| Splice time | 0.01 s(can adjust keep crimp time) |
| Stop splice machine | Can adjust |
| Motor rating | 0.75KW/1.0KW Sevo motor |
| Power supply | AC220 110V /50 60HZ |
| Wire diameter | AWG24#-AWG10# |
| Feeding length parameters | 1mm-99.9mm |
| Cooper width | 1.0-6.0mm |
| Splice precision | 0.1-0.2(±0.05m) |
| Dimensions | 340*360*450mm |
| Crimp Pull Power | within 20KG |
| Weight | 65KG |
