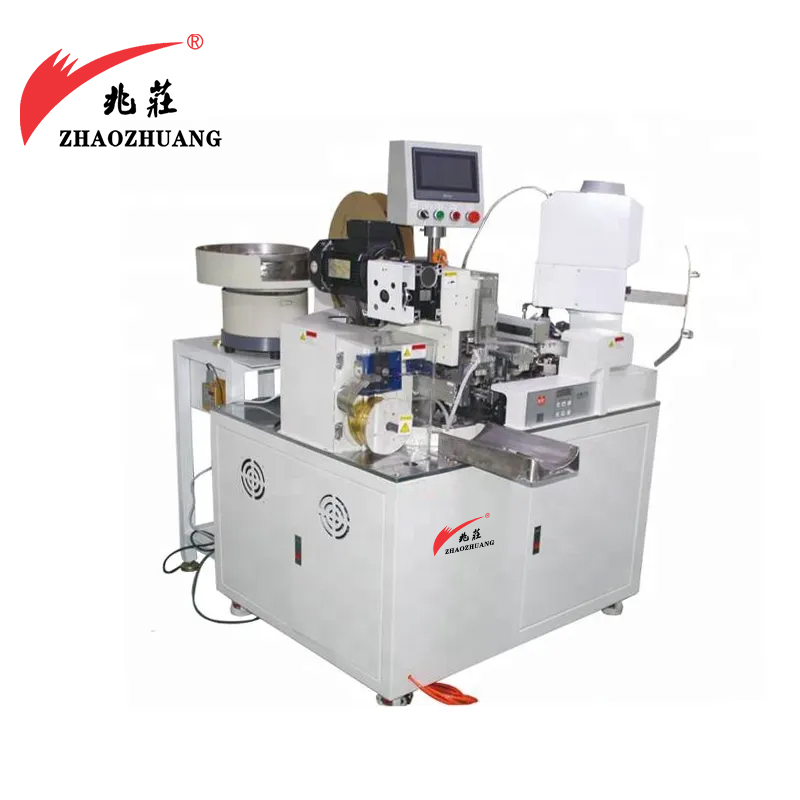

Fully Automatic Wire Splicing Machine
Product Categories: Terminal Crimp Machine
Model: XC-1520
Brand: ZHAOZHUANG
Online Inquiry·This machine is suitable for voltage and wire crimping, fuse and wire crimping, component and wire connection. can set unilateral or double terminal crimp.
·The machine is automatic feeding, automatic conveying of materials, cutting, stripping, terminal crimp , terminal riveting testing,wire copper splice, copper strip riveting testing, to achieve continuous, efficient and high quality automated production of products.
·The use of high-tech servo control and step feed control, according to product requirements set: wire cutting length, skinning length, resistance cut foot length, resistance shaping cut foot length and copper splice size and Production capacity.
·The machine has automatic detection function: wire transmission abnormality, stripping abnormality, terminal crimping abnormality,wire copper splice abnormality, resistance conveying abnormality, air pressure abnormality detecting device.
| Model | XC-1520 |
| Wire range | AWG28-AWG18 |
| Stripping length | 3-14mm, other length can be customized |
| Lead screw and guide rail | Original Taiwan WIHIN |
| Cutting length | 100-999mm |
| Speed | 800-1000pcs/h |
| Power | 2.5KW |
| Splice force | 2.0T |
| Power | 220V/110V/50/60HZ |
| Air pressure | 0.5-0.7Mpa |
| Machine size | 1800*1700*1500mm |
| Weight | 300Kg |
| Driving way | High precision stepper motor,SMC,Advance tech Pneumatic components,self-developed,programmable numerical control system |
| Tube length | 15-50mm |
