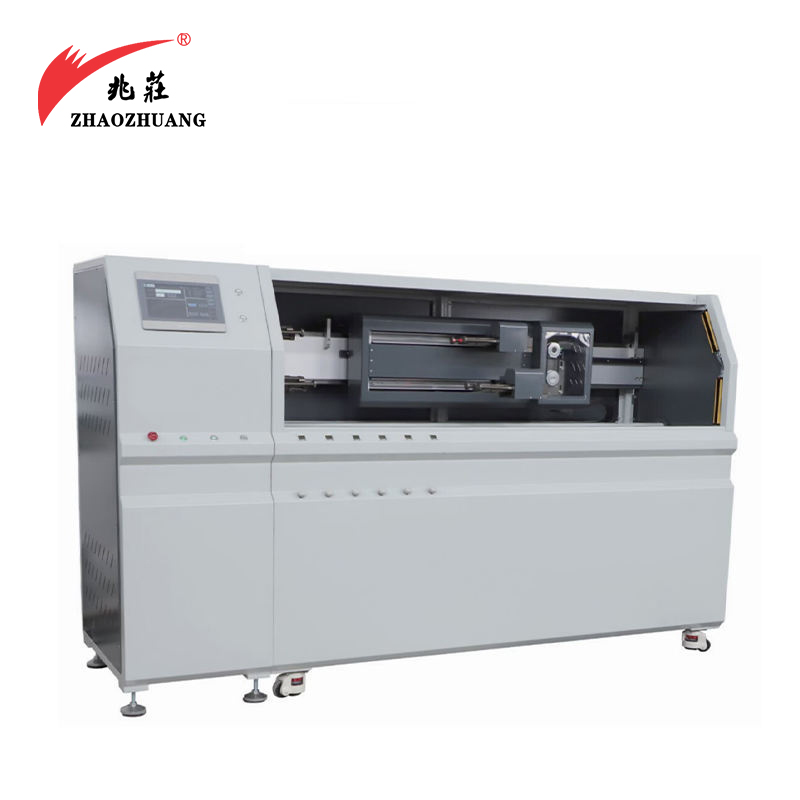

Semi-automatic Intelligent Wire Twisting Machine
Product Categories: Stripping and Twisting
Model: XC-20H
Brand: ZHAOZHUANG
Online Inquiry1.Induction intelligent: The use of optical fiber sensor automatic induction wire, automatic wire clamping,automatic withdrawal after the completion of the stranded wire;
2.Intelligent display: The use of large screen man-machine operation interface, to achieve real-time monitoring of the current state;
3. Intelligent control: The use of PLC autonomous control equipment operation;
4. Intelligent adjustment: comprehensive digital control, torque and strand length can be adjusted;
5. The equipment can be customized according to customer requirements, the longest customized 12 meters.
| Model | XC-20H |
| Strand length | 100-3000mm ( can be customized up to 11M ) |
| Number of strands | Double wire two groups of stranded wire |
| Wire size | 0.35-2.5mm2 |
| Total length accuracy of strand | 10mm |
| Skein accuracy | 2mm |
| Motor speed | 100-2500 r/min |
| Swivel jaw | 2 pcs |
| Air pressure | 0.6Mpa |
| Power supply | 220V 50/60Hz |
| Dimension | 2500x780x 1500 |
| Weight | 448KG |
