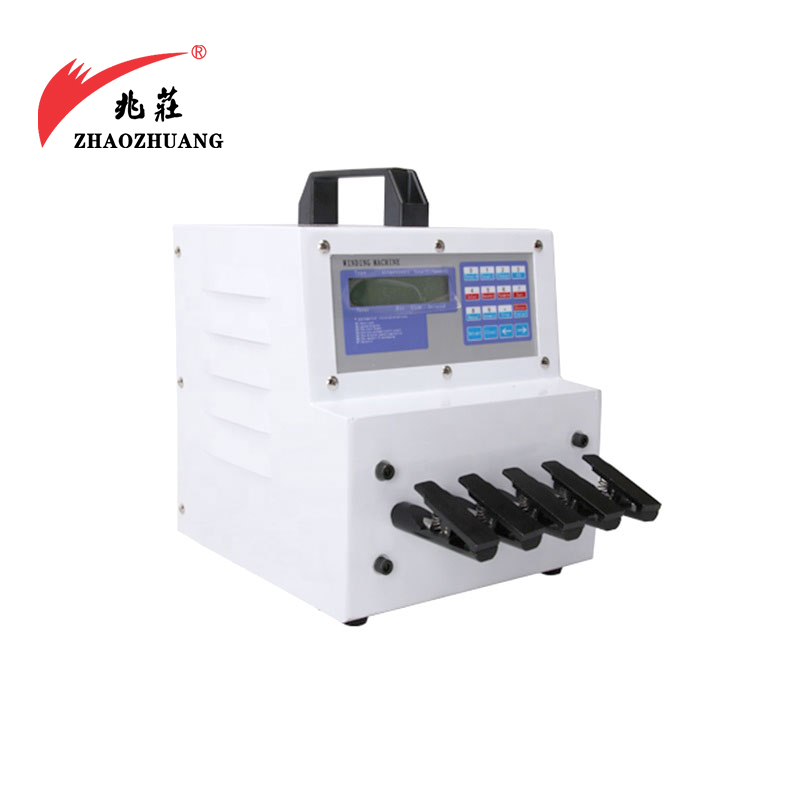

Wire Twisting Machine
Product Categories: Stripping and Twisting
Model: XC-20F-1
Brand: ZHAOZHUANG
Online Inquiry
Suitable for electronic wire,twisted wire, braided isolationwire, computer connection wire, automobile wire, LCD display stranded wire
| Model | XC-20F-1 |
| Conductor cross-section | 0.1 - 2.5 mm² |
| Twisting speed | 200 - 5500 turns/min, adjustable |
| Twisting length | By setting the number of turns |
| Memory capacity | 99 materials |
| Tolerance | 0 |
| Maximum segment processing capacity | 20 segments |
| Output record | 9999 |
| Power supply | 110, 220 V (50 - 60 Hz) |
| Power | < 90 W |
| Weight | 9 kg |
| Dimension | 300 * 220 * 290 mm |
