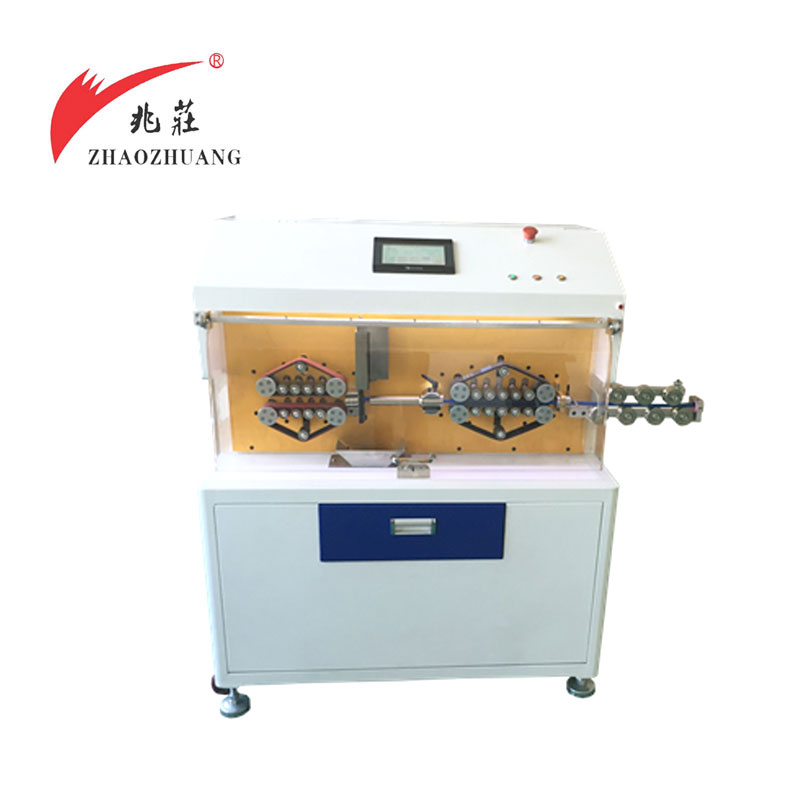

Multi-core Cable Cutting and Stripping Machine
Product Categories: Cutting and Stripping
Model: XC-880XXL
Brand: ZHAOZHUANG
Online InquiryMulti-core Cable Cutting and Stripping Machine
This machine is a large-scale power supply sheathed cable stripping machine, which is specially designed for processing multi-core round sheathed cables.
It can process sheathed cables up to 15mm.
The outer sheath and core wire can be stripped simultaneously,
1. supporting the function of core wire automatic trimming,
2. supporting the functions of the outer sheath milddle stripping, core wire middle stripping, and core wire half stripping.
Multi-core Cable Cutting and Stripping Machine
| Brand | ZHAOZHUANG | Middle stripping | 14 (can be customized） |
| Type | XC-880XXL | Drive method | 14 wheels drive at the same time, silent servo motor, each step forward 0.1mm |
| Size | 1020*700*1140mm | Cutting length | 1mm--99999mm |
| Weight | 248kg | Stripping length | 1mm--35mm（normal） |
| Power supply | 220V | Both end stripping length | front stripping length 50mm/ end stripping length 120mm |
| Power | 1200W | Cutting torlerance | within 1m ±1mm,longer than 1m ±2mm |
| Wire size | 6-120mm2 | Conduit diameter | 4--30mm |
| Speed | 1-10 depends on wires | Blade material | tungsten steel/white steel |
| Type of wire |
BV/BVR wire Sheath wire etc. Automatic adjustment of wire core, different specifications of cable without tool replacement. |
New energy line / charging pile / charging gun | Up to three layers of outer jacket |
