Ultra-short Wire Cuttingg and Stripping Machine
Product Categories: Cutting and Stripping
Model: XC-220B
Brand: ZHAOZHUANG
Online InquiryThis Ultra-short Wire Cutting & Stripping Machine XC-220B is specially designed for processing ultra-short wires.
·The pulling clamp is used instead of the outlet rollers, thus greatly shortening the distance between the tail stripping mechanism and the cutter.

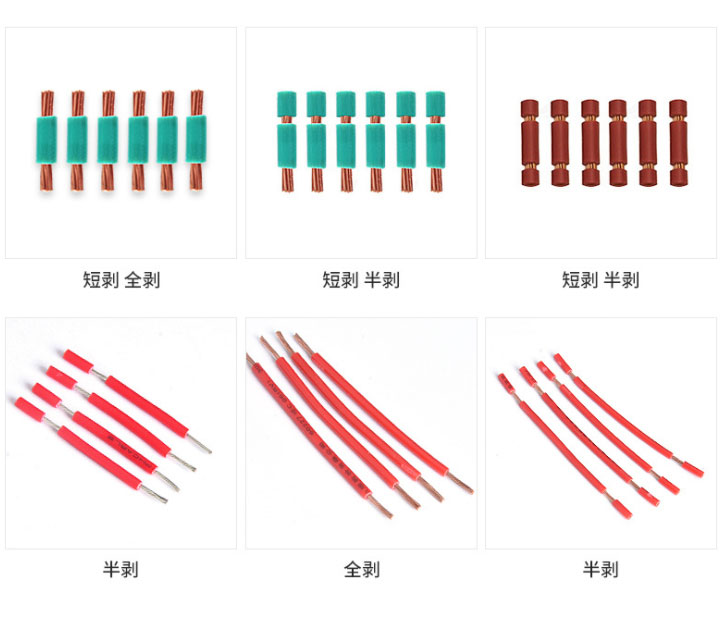

·It can easily strip both ends of the total length of 15mm wire.
Its working principle is different from other stripping machines with ultra-short wire function, it is not achieved by pushing the wire insulation sheath to one side.
·It can strip wire head and tail by the normal process, which has higher accuracy and stability. Unstripped parts of the wire insulation sheath will not loosen.
·The machine is also suitable for processing long wires and has a wid range of applications.
Ultra-short Wire Cuttingg and Stripping Machine
Available Wire Size: 0.1-4mm2
Max. Conduit Diameter: Φ 4mm
Insulation Remaining Length: Min.15mm
Cutting length: 0.1-99999.9 mm
Capacity: 5000-8000 pcs/h
Power: AC220V 50Hz/110V 60Hz
Air Pressure: 0.5-0.8MPa
Dimension: 420*400*280mm
Net. Weight: 25Kg
