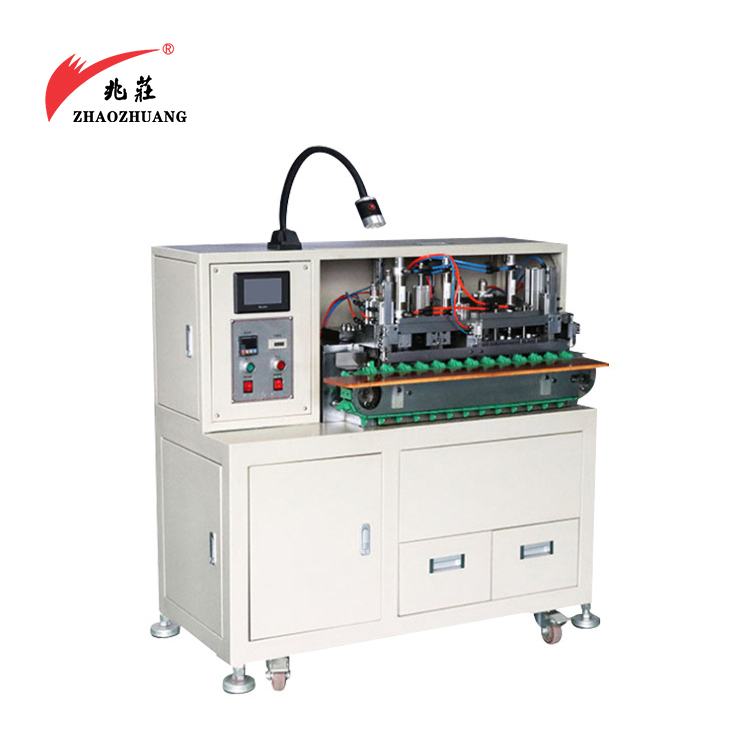

Automatic Cable Stripping Twisting Machine

Product Categories: Terminal Crimp Machine

Model: XC-7015

Brand: ZHAOZHUANG

Description
Specification
Application

Two-core and three-core cables(Limited to cables with size smaller than 1.5mm²).
Stripping of exterior and interior wires can be completed once for all, applicable for wire stripping of two-core and three-core plugs,easy for operation.

Model	XC-7015
Wire Stripping Size	12-40mm
Pressure Of Air Source	0.5-0.8Mpa
Pressure Connection Speed	2000-2400pcs/hour
Voltage	AC220V/50Hz
Weight	100KGS
Dimension	680mm580mm1100mm
