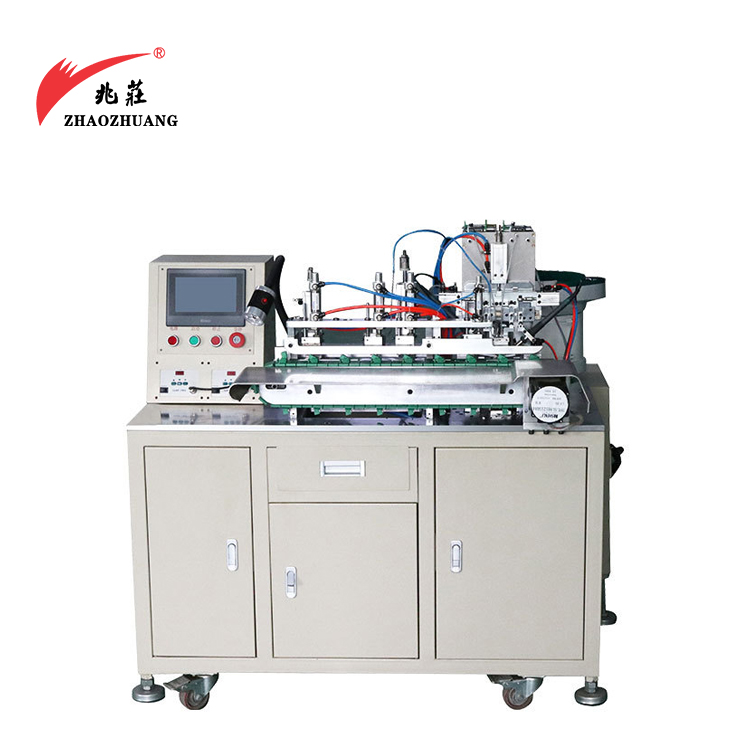

DC Terminals Soldering Cable welding Machine
Product Categories: Terminal Crimp Machine
Model: XC-714
Brand: ZHAOZHUANG
Online InquiryThe DC head automatic stripping soldering machine is mainly used for automatic welding of DC series and RCA series, consisting of vibration disc automatic feeding, wire clamping, wire splitting, wire stripping, welding and other workstations. The equipment structure is compact, and the welding positioning has the characteristics of fast speed and high accuracy. Completion is the docking and welding of lines and solder joints in three-dimensional space, ensuring stable product quality after welding.
| Model | XC-714 |
| Soldering model | Mainly is pressure welding : optional pulse welding, spot welding |
| Adaptation connectors | DC series, RCA series,Stereo plug series |
| Applicable | 2468, round wire; wire OD 0.3-1.2mm, PVC, PE, TPU, copper / copper clad steel / copper clad aluminum; with cotton thread with nylon wire |
| After welding wire length | 2.5-8mm |
| Using tin | OD 0.6-1.2mm,average savings of 15% |
| Internal peeling length | 250-600 degrees adjustable |
| Machine operation | Commissioning, single-action operation, linked operation |
| Machine productivity | 1200-1300pcs/hour |
| Consumable parts | Tip, stripping knife, cutter, soldering iron handle |
| Power source | AC220V 50/60HZ |
| Air pressure | 5-6kgf/cm2 |
| Machine size | 1180*750*1120mm |
| Weight | 220KG |
