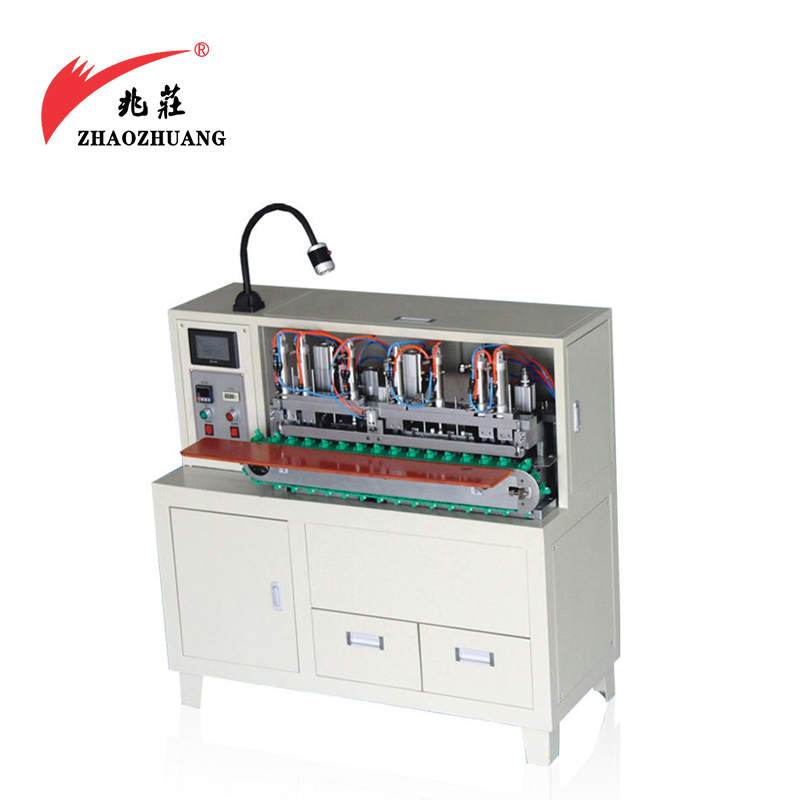

Wire Stripping Twisting and Tinning Machine
Product Categories: Terminal Crimp Machine
Model: XC-701
Brand: ZHAOZHUANG
Online Inquiry1.The machine has the characteristics of fast speed and high precision.which solves the cumbersome and low efficiency of shielding andtwisting weaving in traditional industries.
2.Collecting dividing wires, stripping, twisting, tinning, and cutting can be done in one time.
3.The large screen and buttons are clear at a glance, the operation is more convenient,and the automation program is high, the use range is wide, and the service life is long.
| Model | XC-701 |
| Wire stripping size | 2mm-9mm (0.08-0.35in) (Round sheathed wire, for two core) |
| Max size of slitting | 50mm (1.97in) |
| Soldering(Tinning) size | 2mm-9mm (0.08-0.35in) |
| Production capacity | 1700-2000 purchase |
| Voltage | AC220V/50HZ |
| Pressure of air source | 0.5-0.8MPa |
| Weight | 300KG |
| Dimension (L*W*H) | 1200*630*1300mm |
