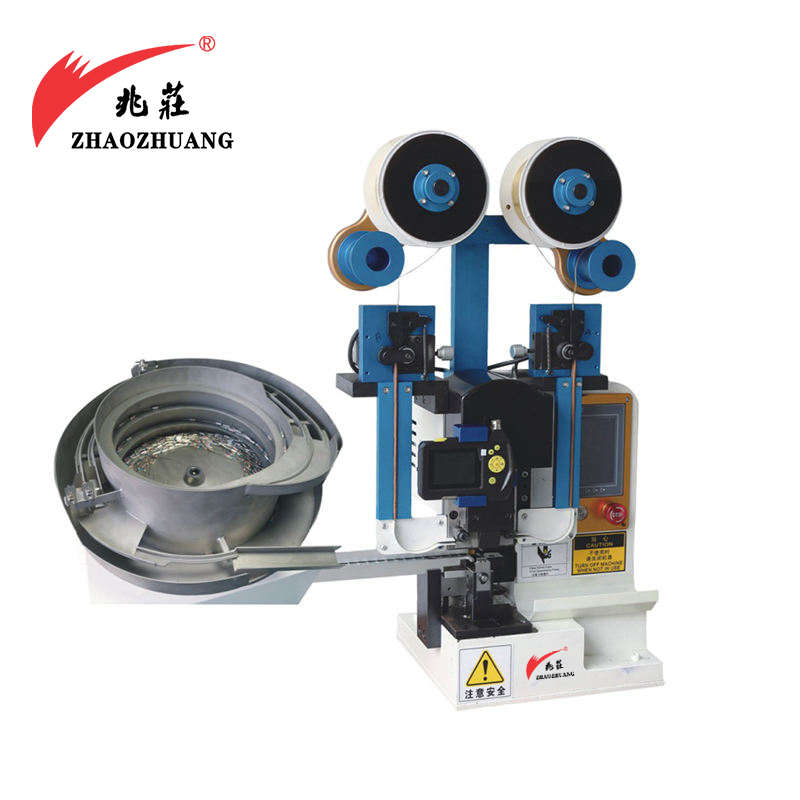

Wire Double Splice Machine
Product Categories: Terminal Crimp Machine
Model: XC-1555
Brand: ZHAOZHUANG
Online Inquiry 1.The latest copper crimping machine ,Color LCD touch screen settings, servo system control parameters, stroke control precision, while crimping the parameters of the two products.
2.The equipment is equipped with pressure detecting device and monitor to control the crimping point according to requirements.
3. It can realize a variety of products produced by one machine, and configure the die according to the wire and the requirements. The structure of the machine is simple and easy to change the die operation.
| Model | XC-1555 |
| Splice force | 2.0T (can adjust ) |
| Splice time | 0.01 s (can adjust keep crimp time ) |
| Stop splice machine | Can adjust |
| Motor rating | 0.75KW Servo motor |
| Power supply | AC220 110V /50 60HZ |
| Wire diameter | AWG22#-AWG14# |
| Feeding length parameters | 1mm-99.9mm |
| Cooper width | 1.0-6.0mm |
| Splice precision | 0.1-0.2(±0.05m) |
| Driving Way | Servo motor ,stepping feeding |
| Dimensions | 570*380*760mm |
| Weight | 72KG |
