Automatic Two Wires Combined Three Ends Terminal Crimping Ma
Product Categories: Automatic Crimp Machine
Model: XC-21C
Brand: ZHAOZHUANG
Online Inquiry1.This machine will cut and strip your wire firstly and then crimp a terminal on one end automatically.
2.The whole machine adopts servo control, fast speed, low noise and fast speed up to 4000pcs/H.
3.With detector when the machine is abnormal,such wire existence,wire overload,strip error,terminal existence,crimp error,bad crimping then it will alarm.
4.This terminal crimping machine can crimp various terminals, we can design the crimping mould according to your samples. If you want to use one machine to crimp different terminals, you only need to change applicator.
Model: XC-21C
Applicable wire range: AWG34-AWG14
Stripping length: Side A:0-10mm, Side B:0-13mm
Cut precision: ±(0.5+0.002*L) mm, L=cut length
Cutting length: 50-9999mm
Capacity: 3100pcs/hour(L=200mm)
Crimping force: 2.0T
Applicators: 30mm or 40mm strokes for optional

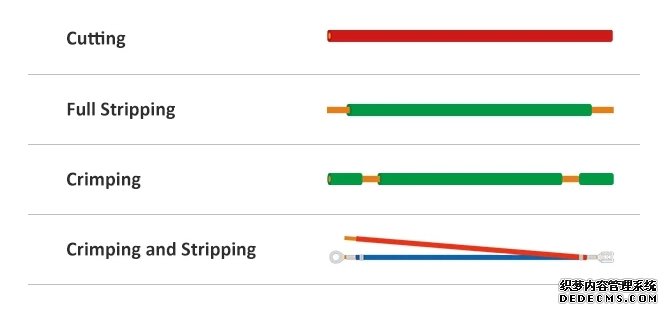

Function: Two wire both ends/ one end crimping/ Two wire crimp into on e terminal
Detection: Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power: 220V/110V/50/60HZ
Display language: Chinese/English
Dimension: 1600*800*1550mm
Weight: 800Kg
Power cord plug: European, USA, Chinese plug
