Double Heads Heat Shrinkable Tube Insertion and Heating Shri

Products Categories

Product Categories: Automatic Crimp Machine

Model: XC-YT10WA

Brand: ZHAOZHUANG

Online Inquiry

Description
Specification
Application

Wire size: 0.3-2mm² (AWG24#-AWG14#)
Cutting length: 80mm-9999mm
Cutting tolerance: ±0.2mm
Stripping length: 1-15mm
Stripping toleranc: ±0.1mm
Tube size: OD: 2.0-7.0, Length: 15mm-35mm
Pressure power：2.0T
Pressure trip: 30mm
Mold: OTP mold
Detection device (optional): Air pressure detection, wire detection, wire overload detection, crimping terminal detection, terminal overload detection, terminal insertion detection, pressure monitoring
Control method: single-chip microcomputer

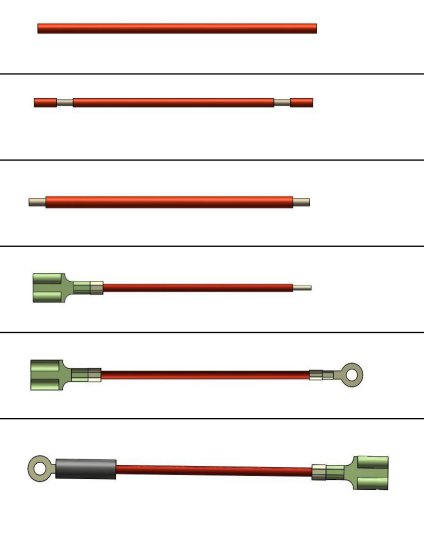

Function：Cutting, stripping, 2-side crimping terminal, 2-side inserting heat shrinkable tube, Automatic positioning, baking tube.
Capacity：①crimping: 3000pcs/h
②2-side crimping terminal, one side inserting tube: 2300pcs/h
③2-side crimping terminal and inserting tube: 1000pcs/h (depends on wire and tube size and length)
Air pressure: More than 0.5MPa（170N/min）
Power supply: Single phase AC220V 50/60Hz 10A
Dimesnsion: 2000*900* 1500mm
