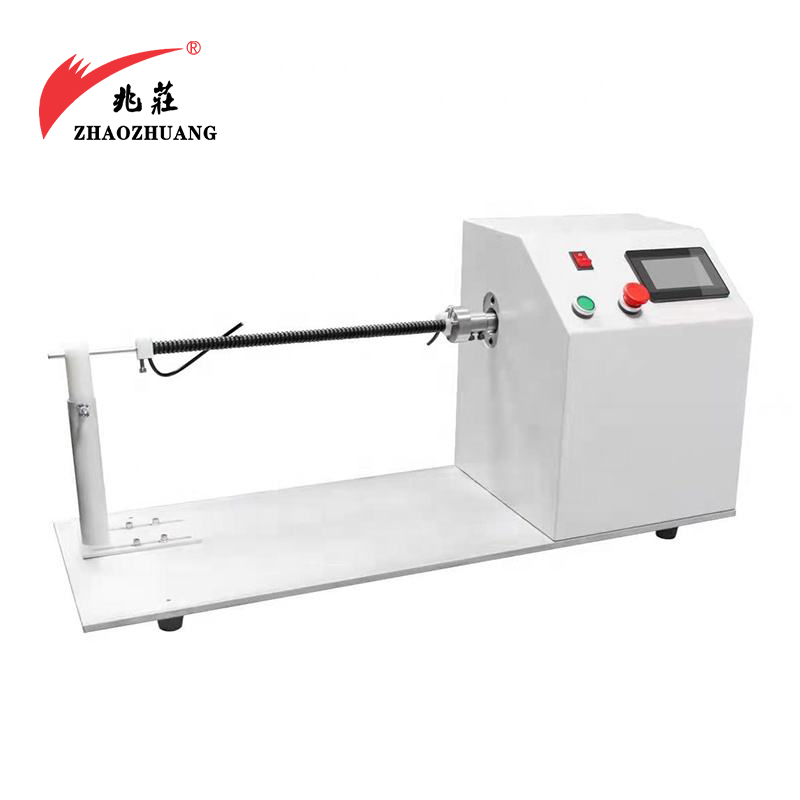

Spring Winding Machine
Product Categories: Stripping and Twisting
Model: XC-2055
Brand: ZHAOZHUANG
Online InquiryThis spiral winding machine is mainly used to produce spring wire and telephone cord.
1. The number of winding turns can be set arbitrarily
2.Speed adjustable
3.With brake, low noise
4. Adjustable forward and reverse, with counting function.
| Model | XC-2055 |
| Application | Telephone phone cable spiraling |
| Speed | 3000-4500 rpm (servo motor) 600 rpm (stepper motor) |
| Winding efficiency | 3000-5000 pieces/day (Length = 3 meters) |
| Winding length | 400mm(Longer length can be customized) |
| Wire diameter | 1~8mm (can be customized) |
| Power supply | 110, 220 V (50 - 60 Hz) |
| Dimension | 560 * 500 * 340 mm |
