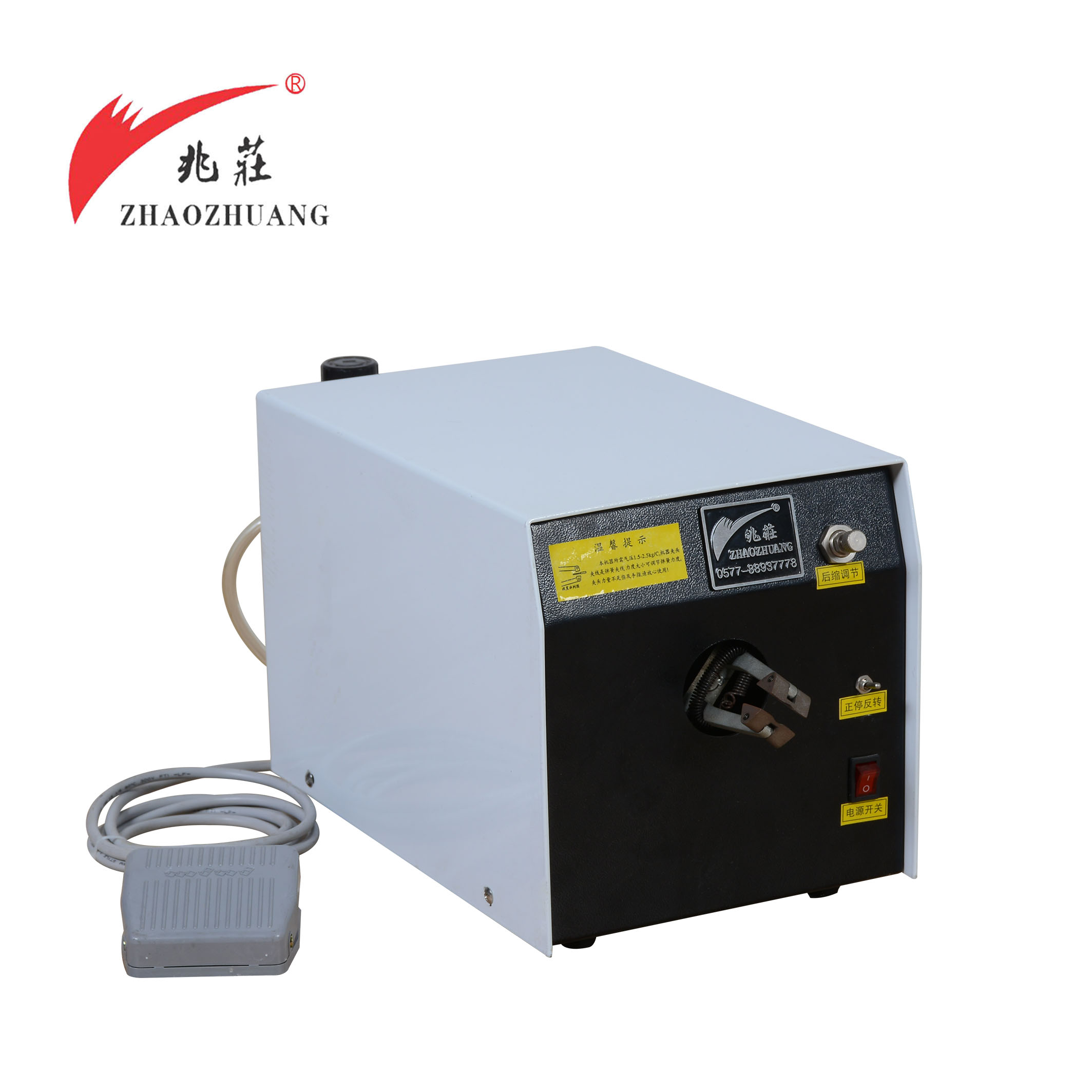

Cable Twisting Machine
Product Categories: Stripping and Twisting
Model: XC-10WT
Brand: ZHAOZHUANG
Online InquiryIt can tighten all kinds ofground wires, brsided wires and isolation wires, completely re placing manual workPneumatic control is used to connectthe air source, and the gripperopens automatically. When the gripperoperates, it only needs to put the wire into the hand and start the pedal switch lightly to complete the twistingoperation. The a utomatc grip per is designed to be exposed so thatthe dispersed copperwire can be essihplaced. Elasic clamping, when the size ofthe line is different, there is no need to adjust. This modelis anupgraded version ofpneumatc twister New automatc wire drawing device,easy to use
| Model | XC-10WT |
| Twisting length | 5-80mm (150mm can be customized) |
| Twisting range | 0.2-2mm2 |
| Air pressure | 1.5-2.5kg/cm2 |
| Motor | 10W |
| Speed | 1400RPS |
| Weight | 12Kg |
| Dimension | 340*190*170mm |
| Power cord plug | European, USA, Chinese plug |
