Automatic Wire Stripping Crimping Twisting and Tin Soldering
Product Categories: Crimping and Soldering
Model: XC-019N
Brand: ZHAOZHUANG
Online InquiryAutomatic Wire Stripping Crimping Twisting and Tin Soldering Machine
Features
1. Computer adjusting knife without gasket
2. Operating screen KINCO 7 inch Chinese version
3. Pneumatic Components: FESTO of Germany, Adeko of Taiwan
4. Temperature Control Meter: Omron
5. Motor: Mitsubishi Servo
6. Screw rod and guide rail: Shang Yin, Taiwan
7. DETECTION OF DIGITAL DISPLAY PRESSURE
· Mitsubishi servo motor. accurate, efficient and stable;
· Touch screen touch mode adjustment, including: wire length, opening length, half stripping length,twist line tightening, twist line length, tin staining length and so on one key to complete.
· The computer-based automatic detection, such as low pressure, abnormal motor, abnormal beltetc, can automatically stop when abnormal, and the detection shows the cause of the failureconvenient and rapid troubleshooting
· The best feature is that the adjustment technology is simple, the adjustment time is short, and theadjustment time can be greatly reduced
· Touch screen adjusts the position of the terminal, making the terminal more precise and stable
Automatic Wire Stripping Crimping Twisting and Tin Soldering Machine
Power: AC 220V 50/60Hz Single-phase

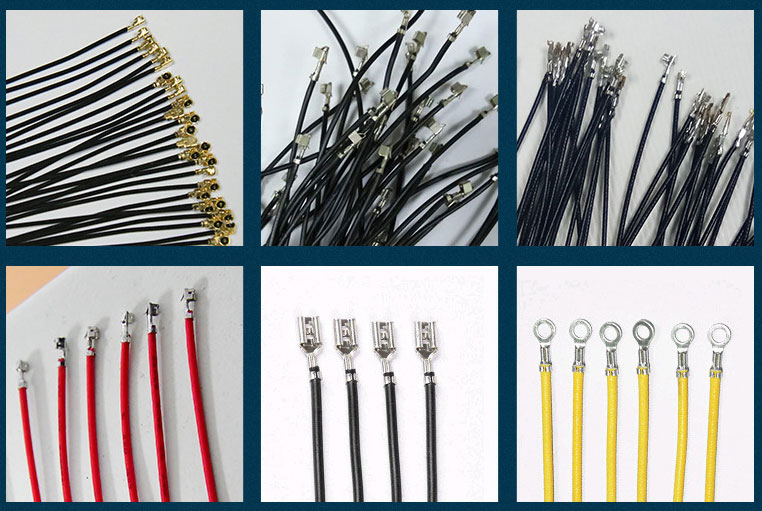

Function: Wire cutting, single side stripping, both side stripping, single side crimping, both sides crimping, single side twisting and single side soldering.
Processing capacity: 6000pcs/h (wire length within 100mm)
Applicable wire range: AWG#32-AWG#20
Cutting length: 8-650mm
Cutting tolerance: 1mm±Cutting length*0.1%
Opening length: 0-8mm
Twisting length: 3-8mm
Tin length: 0.5-8mm
Air pressure: 5-6Kgf (must use clean dry air)
Dimension: 1280*680*1300mm (thrusts are not contained)
Weight: Approx 410Kg
