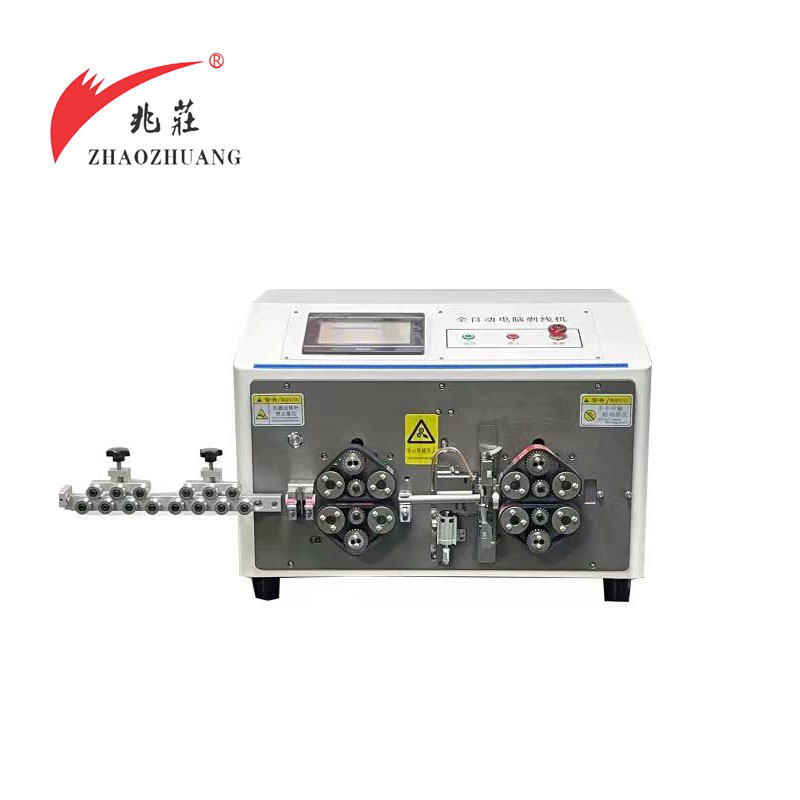

Multi-core Wire Cutting Stripping Machine

Product Categories: Products

Model: XC-3055

Brand: ZHAOZHUANG

Online Inquiry
  • Description
  • Specification
  • Application

This machine adopts the latest 32-bit intelligent control system, with Chinese and English switching LCD display and touch screen operation. It can store 100 pieces of information and be called up at any time, with fast efficiency and convenience. High end configuration, high precision, error free length, and high output. Suitable for peeling the outer core wire of lamp cables, power cables, flat power cables, and SUB data cables.

Model: XC-3055

Function: Wire cutting, double-end stripping, middle stripping

Wire range: OD 3-10mm

Cutting length: 0.1mm-99999.9mm

Stripping length: Outer line: head:0.1-250mm tail: 0.1-100mm

Core line: head:2-30mm tail: 2-30mm

Stripping accuracy: Silent hybrid stepper motor 0.01mm

Intermediate strip: Can be customized

Capacity: 1000-2000 pcs/ h

Blade material: Imported tungsten steel / high speed steel

Power: AC110V/220V 50/60HZ

Dimension: 520mm*630mm*480mm

Net. Weight: 77.5kg Weight: 90KG

Remark function: Automatic entry / exit, timing start, jog

adjustment
