Three Ends Two Wire Combined Crimping Machine
Product Categories: Products
Model: XC-T333E/XC-T3334
Brand: ZHAOZHUANG
Online Inquiry| Model | Main function |
| XC-T333E | Two-wire combination crimping, the other two wire ends crimping two types of terminals |
| XC-T3334 | Four-wire combination crimping, the other 4 wire ends crimping 2 types of terminals |
1. Fully Automatic Wire Cutting Stripping Two wires Three ends Terminal Crimping Machine adopts procedural control interface with touch screen LCD display,it has operate system in Chinese and English, easy to operate and stable performance.
2. Fast send wire ,cut wire,strip wire and crimp the terminals,high precision, fast speed,front and rear swing arms are both controlled by servo,and ultra low noise,more stable.The length of sending/cutting/stripping wire, and the delay time of crimping,which all can be accomplished by digital configuration.
Applicable wire range: AWG26-AWG14
Stripping length: 0.5-12mm
Cut precision: ±(1+0.002*L) mm, L=cut length
Cutting length: 55-9900mm(15mm can be customized)
Capacity: 2200pcs/hour(L≤100mm)
Crimping force: 2.0T/3T(can be customized)
Applicators: 30mm or 40mm strokes for optional

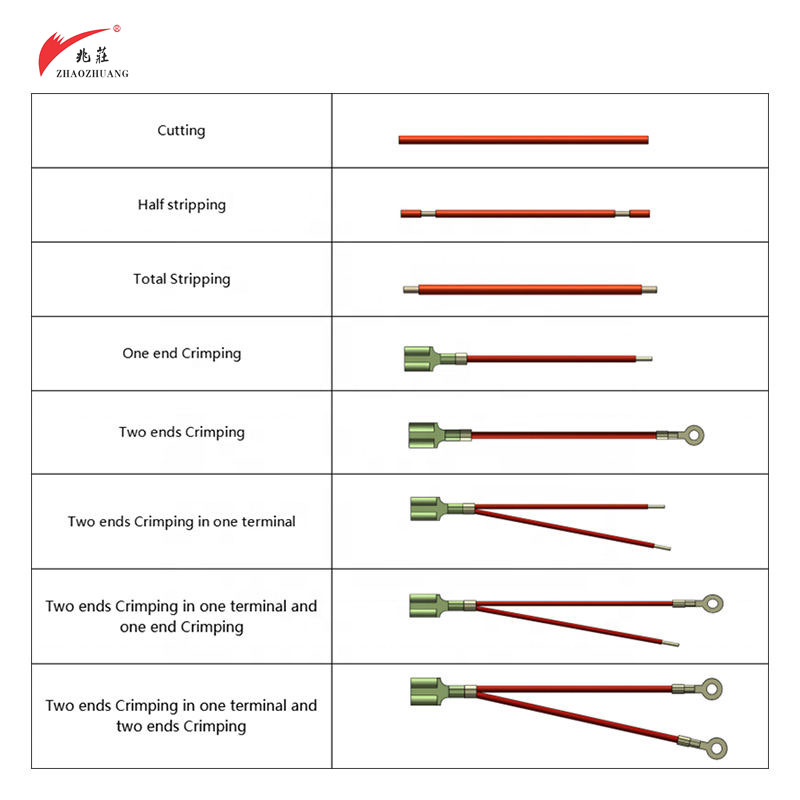

Function: Two wire both ends/ one end crimping/ Two wire crimp into
one terminal
Detection: Wire run out, low air pressure, terminate error(Crimping force
monitor is for optional)
Power: 220V/110V/50/60HZ
Display language: Chinese/English
Dimension: 1450*830*1530mm
Weight: 400Kg
Power cord plug: European, USA, Chinese plug
