What is the TE AMPLIVAR 62306-2 wire splice 62304-2 connectors crimp terminal?

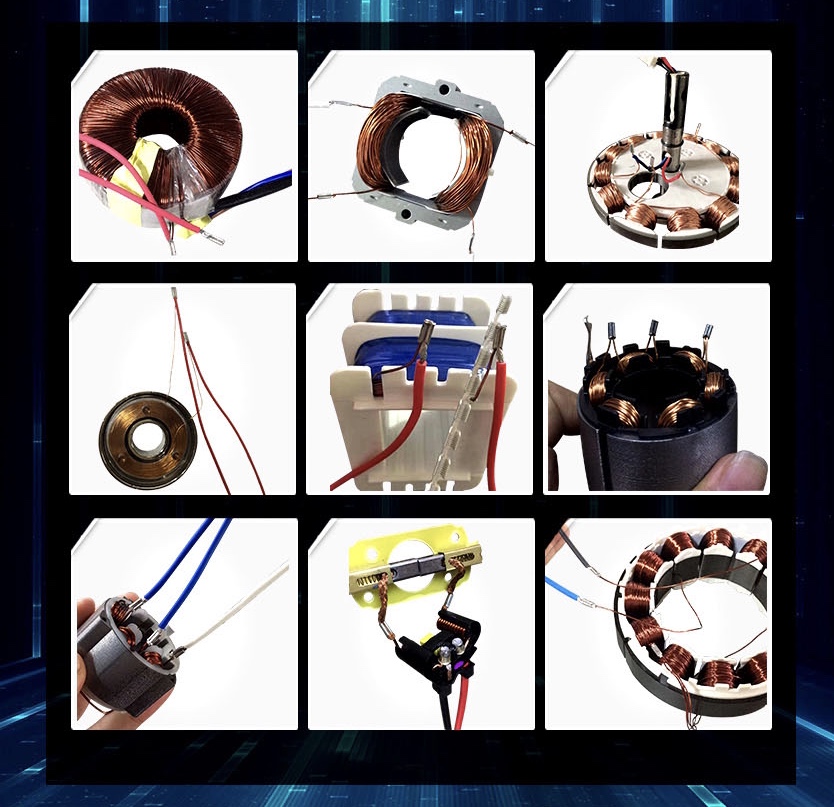

The 62306-2 - Wire Splice for fine magnet wires, AMPLIVAR Series, Crimp ZHAOZHUANG made in China. It specifically designed to terminate magnet wire to itself or in combination with standard solid or stranded lead wire. It can be used for the connection of copper and aluminum material of magnetic wire. No need to strip the insulation of enameled wire and soldering tin. Crimp a 62304-2 62306-2 wire splice only, lead wire and magnet wire will be conductive.
As many as three magnet wires can be terminated simultaneously in one splice. In addition, copper or aluminum magnet wire, or a combination of both, can be terminated. When required, copper or aluminum magnet wire can Section AA be combined with standard, pre-stripped solid or stranded lead wires.
ZHAOZHUANG splices have machined, sharp edged serrations inside the crimp barrels. These serrations, made by a special production process, pierce the insulating layer of magnet wires in a manner that provides a large contact area.
In a one-step operation the magnet wire is automatically multiple ring-stripped of its insulation as it is forced into the serrations during the precisely controlled crimp. The resulting termination produces a high tensile strength, air-sealed connection that is as resistant to corrosion as the insulated conductor.
